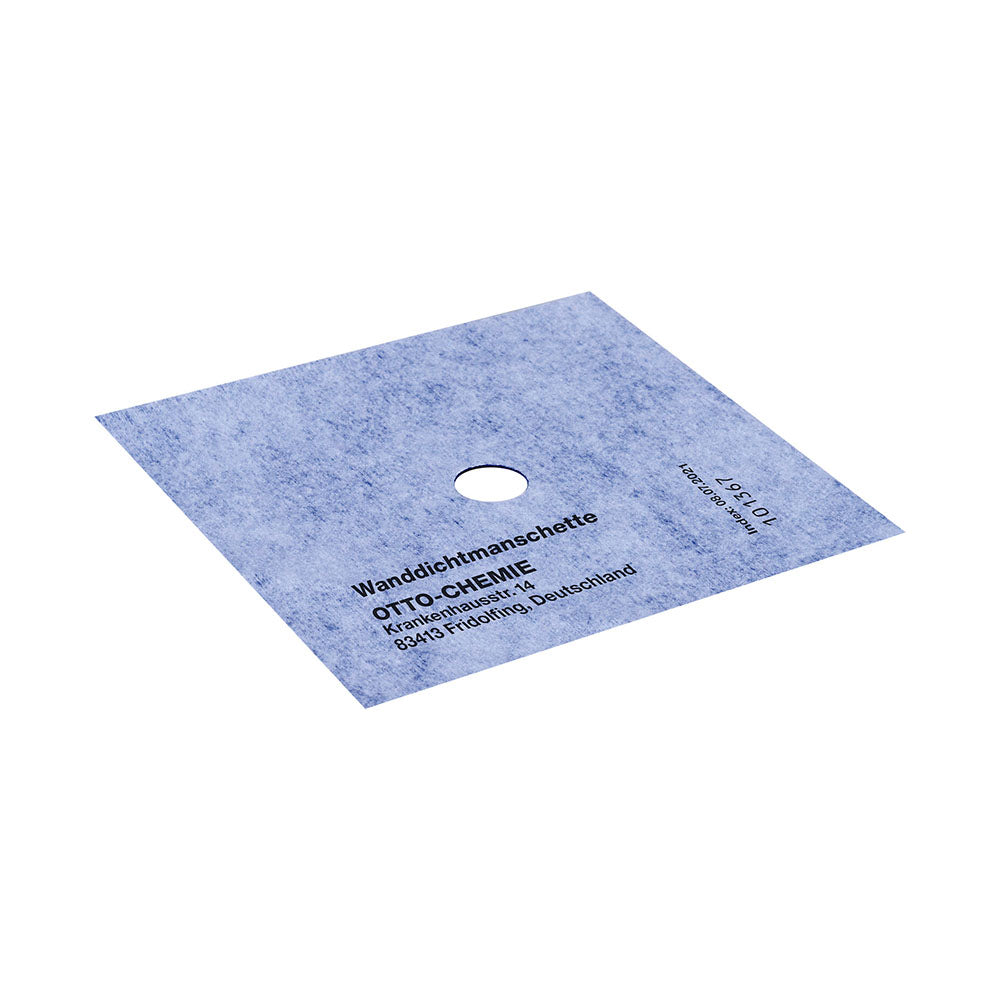

Wall Sealing Sleeve OTTOFLEX®
Wall Sealing Sleeve OTTOFLEX®
The OTTOFLEX® Wall Sealing Sleeve is a professional-grade, elastic membrane designed for permanent, waterproof sealing around pipe ducts in moisture-prone and wet rooms. Fully fabric-reinforced on both sides with a special elastomer sealing layer, it offers exceptional flexibility and tear resistance.
Engineered by Otto-Chemie to sit securely beneath tiles, boards, and ceramic coverings, this sleeve provides a foolproof connection with liquid tanking membranes, slurry seal coatings, and decoupling strips. It guarantees a watertight seal at one of the most vulnerable points in any wet room installation.
👷♂️ The Master Tiler's Verdict
"Pipe penetrations in shower walls are the number one cause of hidden leaks. You cannot just slap some silicone around the pipe and hope for the best. This fabric-reinforced sleeve stretches tightly around the pipe and beds perfectly into your tanking paste. Because it's fleece-lined on both sides, the tile adhesive grips it like concrete."
Pro Tip: If using liquid tanking: Slide the sleeve over the pipe duct and press it firmly into your wet first coat of OTTOFLEX® Protective Coating. Once dry, paint your entire second coat directly over the sleeve to sandwich it in. If using a physical sealing strip: Bond the sleeve over the entire area using OTTOCOLL® M 500 or M 595, ensuring you smooth over the transitions with the oozing adhesive.
Primary Applications
- Wet Rooms & Bathrooms: Permanent waterproof sealing around shower valves, pipe penetrations, and water outlets underneath tiles.
- System Integration: Creates a safe, fully compatible connection with OTTOFLEX® Protective Coating, Slurry Seal Coating, and Sealing/Decoupling Strips.
- Custom Installations: Can be individually cut to size for bespoke pipe layouts while maintaining its tear-resistant structural integrity.
Key Features & Trade Compliance
- Commercial Certifications: Meets strict moisture resistance classes A0 and B0 (ZDB) as well as A, B, and C (abP).
- Stress Categories: Fully compliant with stress categories W1, W2, W3, W4, W5, and W6 in accordance with ÖNORM B 3407.
- Durability: Highly resistant to aging and extreme temperature fluctuations (-30°C to +90°C).
- Eco & Air Quality: Certified EMICODE® EC 1 Plus (Very low emission) and French VOC-emission class A+.
Technical Specifications
| Dimensions | 15 cm x 15 cm |
| Hole Diameter | 15 mm |
| Total Thickness | ~ 1.1 mm |
| Colour | Blue |
| Waterproofness | > 1.5 bar (DIN EN 1928, Vers.B) |
| Bursting Pressure | > 1.5 bar |
| Temperature Resistance | -30°C to +90°C |
| Shelf Life | 24 months (at 23°C / 50% RH) |
📄 Technical & Certification Documentation
Download the official Otto-Chemie data sheets and emission certificates for full commercial project compliance and structural warranty documentation:
