The OTTOFLEX® Sealing Strip is a premium polyethylene waterproofing membrane with a double non-woven fabric backing. Engineered by Otto-Chemie for rapid installation in moisture-prone and wet environments, it serves as a highly reliable, crack-bridging, and uncoupling alternative sealing strip underneath ceramic and natural stone coverings.
Designed to anchor perfectly into thin-bed tile adhesives, this 30m x 1m roll allows for immediate further processing with zero waiting time before tiling. It is completely impermeable to water, has water vapour retarding properties, and exhibits superior resistance to aging, decomposition, and alkaline solutions.
👷♂️ The Master Tiler's Verdict
"When you're running against a tight deadline on a commercial shower block or hotel refit, waiting for liquid tanking membranes to cure between coats eats your profit margin. This OTTOFLEX roll lets you bed the membrane down with C2 tile adhesive and start laying tiles straight away. It's tough, flexible, and gives you total peace of mind on critical wet area jobs."

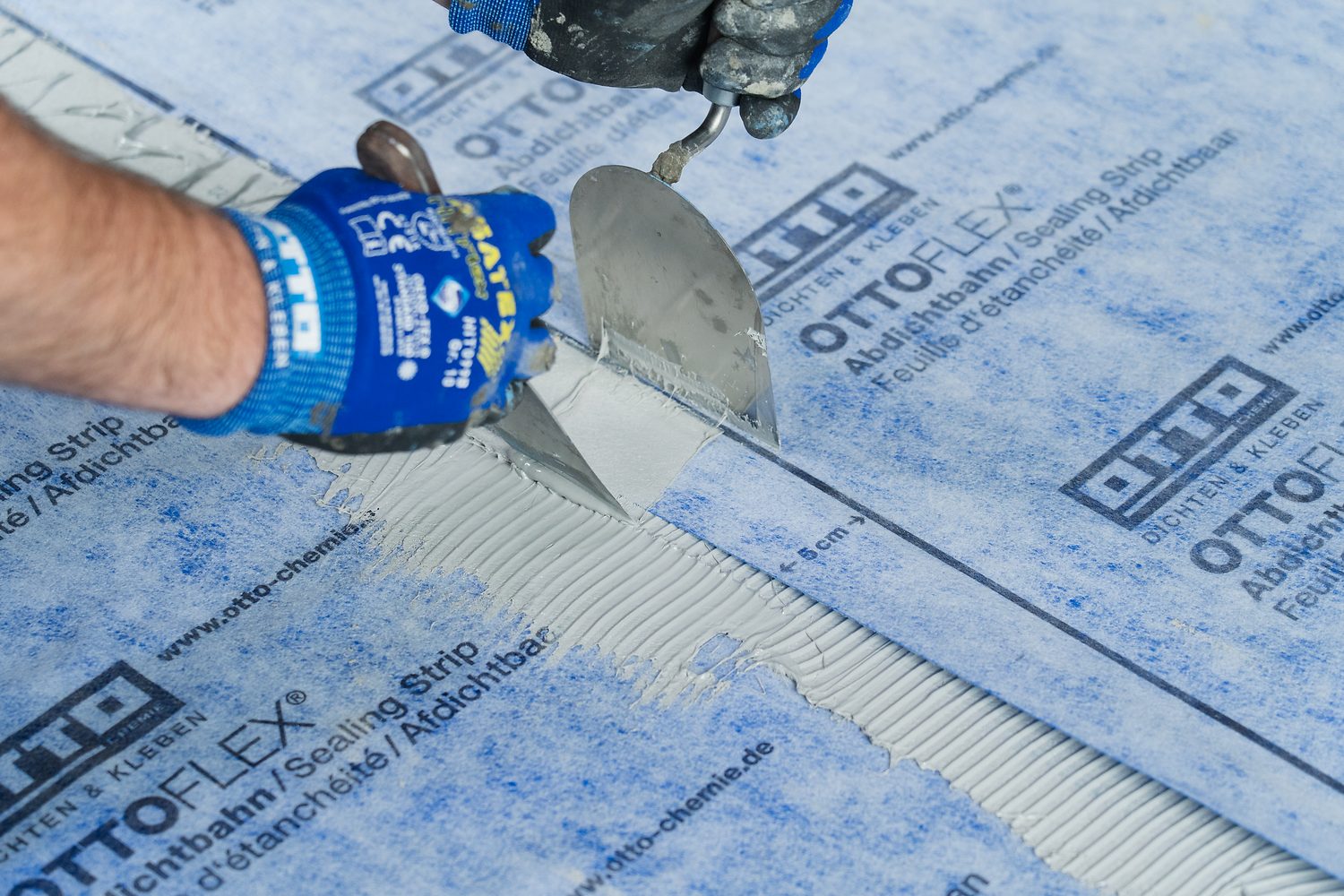

Pro Tip: Apply a C2 thin-bed mortar using a 4x4mm serrated trowel and press the membrane firmly into place using a smoothing trowel guided diagonally to eliminate air bubbles. You must overlap adjacent rolls by at least 5cm. For a guaranteed watertight system across all overlaps, corners, and pipe sleeves, bond the seams using OTTOCOLL® M 500 or M 595.
Primary Applications
- Wet Rooms & Bathrooms: Waterproof composite sealing under ceramic and natural stone using the thin-bed method (shower rooms, public wet areas).
- Commercial & Industrial: Suitable for food industry applications (breweries, dairies) and wet areas such as saunas, steam baths, and swimming pool surrounds.
- Balconies & Terraces: Flexible composite sealing under tile coverings on balconies, terraces, and arcades (not above inhabited rooms; requires a minimum gradient of ≥1.5%).
- Composite Sealing Plus: Approved for specialized installations in combination with OTTOFLEX® Slurry Seal Coating (ÖFV Technical Guidance Note 3).
Key Features & Trade Compliance
- Water Action Categories: Complies with W0-I, W1-I, W2-I, and W3-I (tear class R1-I) in accordance with DIN 18534.
- Commercial Certifications: Meets moisture resistance classes A and C (abP), A0 and B0 (ZDB), and stress categories W1, W2, W3, W4, W5, and W6 (ÖNORM B 3407).
- Alkali & Chemical Resistance: Fully alkali-resistant according to ETAG 022 and AbP test standards. Resistant to aqueous solutions of salts, acids, and alkalis.
- Fire & UV Safety: Rated building material class B2 "normally inflammable" (DIN 4102-1) and UV-resistant up to 450 hours (DIN EN ISO 4892-3).
- Eco & Air Quality: EMICODE® EC 1 Plus (Very low emission) and French VOC-emission class A+.
Technical Specifications
| Roll Dimensions | 30 m (Length) x 1000 mm (Width) — 30 m² total |
| Total Thickness & Weight | ~ 0.6 mm | 275 g/m² |
| Colour | Blue |
| Max Tensile Strength (Length / Cross) | 370 N / 50 mm | 250 N / 50 mm (ISO 527-3) |
| Breaking Expansion (Length / Cross) | 90% | 120% (DIN EN ISO 527-3) |
| Bursting Pressure | ≥ 3.0 bar |
| Water Pressure Resistance | > 1.5 bar (DIN EN 1928) |
| Water Vapour Diffusion (SD Value) | > 85 m |
| Adhesive Tensile Strength | ≥ 0.5 N/mm² (DIN EN 1348) |
| Temperature Resistance | -30°C to +90°C |
| Shelf Life | 24 months (at 23°C / 50% RH) |
System Tested Tile Adhesives (C2 Class)
Tested and official system-approved C2 thin-bed mortars according to abP specifications:
- Ardex N 23 Microtec / Ardex X 7 G plus / Ardex X 78
- Botament M 21 Classic / Botament Multistone
- Codex Power CX 1 / Codex Stone SX 80
- Kiesel Servo Star 2000 Plus Flex
- Mapei Keraquick S1 / Mapestone 1 / Ultralite S1
- PCI Carraflex / Flexible Mortar / Flexible Mortar S1
- PCI FT Extra / PCI FT Flex
- Sakret FFK / Sakret FFKs (Schnell)
- Schönox Q6
- Schomburg Monoflex / Schomburg Soloflex
- Sopro Tile Cement No. 1 / FKM Silver / FKM XL
- weber.xerm 852 / weber.xerm 861
Substrate Preparation & Moisture Limits
Substrates must be clean, load-bearing, flat, and free from adhesive-repelling agents. Prime porous substrates with OTTOFLEX® Deep Primer; smooth/glazed surfaces require OTTOFLEX® Adhesive Primer. Maximum residual moisture levels (calcium carbide method):
- Cement Screeds: Max. 2.0% (Unheated & Heated)
- Anhydrite Screeds: Max. 0.5% (Unheated) / Max. 0.3% (Heated)
- Wall Plaster (Cement/Gypsum): Max. 1.0%
