Ottoseal S94: German Fire Protection Silicone Sealant

Why Passive Fire Protection Matters: The Role of Fire Sealants

Before we dive into Ottoseal S94, let's quickly talk about the bigger picture: passive fire protection. Unlike active systems (like sprinklers or alarms), passive fire protection is built into the structure of a building. Its main job is compartmentation – dividing a building into fire-resistant compartments to slow down or prevent the spread of fire and smoke.

Think about walls and floors designed to resist fire for a specific period (e.g., 30, 60, 120 minutes). That's great, but what about the gaps? Joints between walls and floors, gaps where pipes or cables pass through (penetrations) – these are potential highways for fire and deadly smoke. If these aren't sealed correctly with materials that can withstand fire, the expensive fire-rated wall or floor is compromised.

This is where fire sealants become absolutely critical. They are specially formulated materials designed to seal these gaps and maintain the fire-resistance rating of the compartment. A standard silicone sealant would simply melt or burn away in minutes, rendering the fire barrier useless. A fire protection silicone like Ottoseal S94 is engineered to resist high temperatures and prevent the passage of flames and hot gases for a certified period.

In Ireland, compliance with building regulations regarding fire safety is non-negotiable. Using certified passive fire protection products, including fire sealants, is essential for legal compliance and, more importantly, for occupant safety. You can find guidance on the standards required within the Irish Building Regulations, particularly Technical Guidance Document B (Fire Safety).

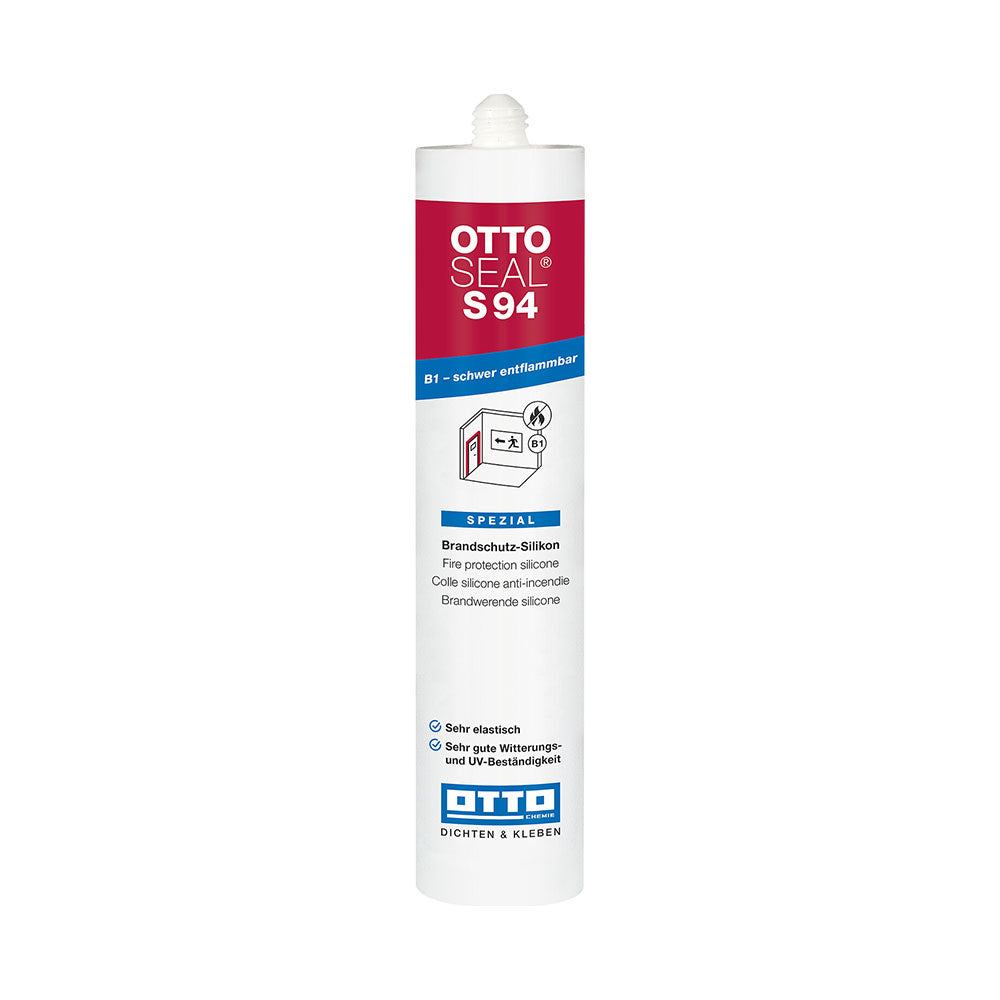

Introducing Ottoseal S94: German Engineering for Fire Safety

Now, let's focus on Ottoseal S94. This product comes from Otto Chemie, a renowned German manufacturer with a long history of producing high-performance sealants and adhesives. When you see the Otto Chemie name, you know you're dealing with quality, rigorous testing, and reliability – hallmarks of German engineering.

Ottoseal S94 is specifically a neutral-curing silicone fire protection silicone sealant. Its primary purpose is to provide a fire-resistant seal in linear joints and specific penetration seals, contributing to the overall passive fire protection strategy of a building. It's designed to achieve significant fire resistance ratings, often up to EI 120 or even EI 180 according to European standards (EN 13501-2), depending on the specific joint configuration and backing materials used. 'E' stands for Integrity (stops flames/hot gas) and 'I' stands for Insulation (limits temperature rise on the non-fire side).

Why does German Quality Matter Here?

In my years as a tiler and working with sealants, I've seen the difference quality makes. For everyday jobs, a decent standard sealant might be okay. But for critical applications like fire protection, you cannot afford to cut corners. German manufacturers like Otto Chemie invest heavily in research, development, and stringent quality control. Their products undergo rigorous independent testing to achieve certifications.
This means:

• Consistency: Every cartridge performs as expected.
• Reliability: It will do its job when it matters most.
• Compliance: It meets the tough European standards required for building safety.

This peace of mind is why we proudly stock Otto Chemie products, including Ottoseal S94, at SealantStore.ie. We bring that trusted German quality directly to
professionals and discerning DIYers in Ireland.

Key Features and Benefits of Ottoseal S94

What makes Ottoseal S94 stand out? Let's break down its key features:

Superior Fire Resistance

This is its core function. Ottoseal S94 is tested according to stringent European standards like EN 1366-4 (for linear joint seals). It can achieve high fire classifications, such as EI 120 or EI 180, meaning it can maintain integrity (E) and insulation (I) for 120 or 180 minutes, respectively, under specific test conditions and when installed correctly as part of a tested system (including appropriate backing material like ceramic fibre). Always consult the product's classification reports and European Technical Assessment (ETA) for precise details relevant to your specific application. Reputable testing bodies like Warringtonfire often conduct these assessments. [https://www.warringtonfire.com/certification-services/fire-certification/certifire]

Excellent Adhesion

A fire sealant is useless if it doesn't stick properly. Ottoseal S94 boasts excellent primerless adhesion to many common construction substrates, including:

• Masonry (concrete, brickwork, aerated concrete)
• Metals (steel, aluminium, stainless steel)
• Some plastics (consult Technical Data Sheet)
• Glass and ceramics This strong bond ensures the seal remains intact, both under normal conditions and during a fire event. For challenging substrates, specific Otto primers can enhance adhesion further.

Durability and Movement Capability

Buildings aren't static. Joints expand and contract with temperature changes and settling. Ottoseal S94 is formulated to handle this. It remains elastic after curing and typically has a Movement Accommodation Factor (MAF) of around 20-25% (check TDS), meaning it can tolerate joint width variations without cracking or losing adhesion.5 It also offers good resistance to weathering and UV radiation, making it suitable for certain exterior applications (within tested parameters).

Ease of Application

From a tradesman's perspective, workability matters. Ottoseal S94 has a smooth, non-slump consistency, making it easy to extrude from the cartridge and apply neatly, even in vertical or overhead joints. It tools off well using appropriate smoothing agents, allowing for a professional finish.

Compliance and Certification

For professionals, documented compliance is crucial. Ottoseal S94 carries the CE mark, indicating conformity with EU safety, health, and environmental protection requirements. It's tested and classified according to relevant European Norms (EN standards), such as EN 13501-2 for fire classification and EN 1366-4 for fire resistance testing of linear seals. The availability of a Declaration of Performance (DoP) and often a European Technical Assessment (ETA) provides documented proof of its performance characteristics, essential for building control inspections and project sign-offs. [https://www.eota.eu/)]

Technical Deep Dive: Understanding Ottoseal S94 Specifications

For the technically minded, here's a typical profile (always verify with the latest Technical Data Sheet (TDS) for Ottoseal S94:

• Curing System: Neutral Alkoxy (low odour, less corrosive than acetoxy silicones)
• Consistency: Pasty, stable (non-slump)
• Skin Forming Time: Approx. 10-20 minutes at 23°C / 50% relative humidity (RH)
• Curing Rate: Approx. 2-3 mm per 24 hours at 23°C / 50% RH
• Movement Accommodation Factor (MAF): Typically 25% (ISO 11600)
• Temperature Resistance: Approx. -40°C to +150°C (after full cure)
• Shore A Hardness: Approx. 25-35 (depends on specific formulation)
• Colours: Usually available in basic colours like white, grey, black.
• Packaging: Standard 310ml cartridges, potentially 600ml foils.
• Shelf Life: Check packaging, typically 12 months from production date when stored correctly (cool, dry).

[Disclaimer: These values are indicative. Always consult the official TDS and Safety Data Sheet (SDS) before use.]

Where to Use Ottoseal S94: Common Applications

Ottoseal S94 is designed for specific fire-stopping applications, primarily:

• Linear Joints: Sealing construction joints between fire-rated walls (masonry, concrete) and floors/ceilings. Also, joints between different elements like walls and structural steelwork.
• Perimeter Seals: Sealing around the perimeter of fire-rated partitions, fire curtains, or screens where they meet other building elements.
• Connection Joints: Sealing joints between fire-rated door or window frames and the surrounding wall structure (must be part of the overall tested door/window assembly specification).
• Limited Service Penetrations: While primarily a linear joint sealant, its ETA might cover specific, simple penetration seals (e.g., certain single cables or small pipes in specific wall/floor types). Caution: It's NOT a universal fire-stopping penetration sealant for complex services – products like fire-rated mastics, collars, or wraps are needed for those.

Crucial Point: The fire rating achieved depends entirely on the joint design (width, depth), the substrate, the specific fire-rated backing material used (e.g., ceramic fibre, stone wool of correct density), and the thickness of the Ottoseal S94 applied. Always install strictly in accordance with the configurations tested and documented in the product's ETA or classification report. Deviating from these tested systems will invalidate the fire rating.

How to Apply Ottoseal S94 Correctly: A Professional Guide

As a tiler who demands perfection, preparation and technique are everything, especially with critical sealants like Ottoseal S94. Here’s how to do it right:

Surface Preparation: The Foundation

You can have the best fire sealant in the world, but if the surface isn't prepared, it won't perform.

• Clean: Surfaces must be completely clean, free from dust, grease, oil, old sealant, bitumen, rust, or any loose particles.
• Dry: Substrates must be thoroughly dry. Moisture hinders adhesion and cure.
• Sound: Ensure the substrate itself is solid and stable.
• Priming: While S94 has excellent adhesion, very porous surfaces (like some concrete or aerated blockwork) or specific metals/plastics might require a primer (e.g., Otto Primer 1216). Always perform an adhesion test first and consult the TDS.

Joint Design and Backing Material

Correct joint design is non-negotiable for fire performance.

• Width/Depth Ratio: Follow the specifications in the ETA/classification report. Typically, the sealant depth is about half the joint width, within certain limits (e.g., min/max width and depth).
• Backing Material: This is critical! You must use the specified fire-rated backing material (often ceramic fibre rope or high-density stone wool) inserted to the correct depth. This controls the sealant depth and ensures it performs correctly under fire conditions. Using standard PE foam backer rod is generally NOT acceptable for fire-rated joints sealed with S94.

Application Technique

• Nozzle: Cut the nozzle tip at a 45° angle to slightly larger than the joint width.
• Gun: Use a good quality caulking gun (manual or battery) for consistent pressure.
• Application: Apply the Ottoseal S94 with sufficient pressure, ensuring it completely fills the joint and makes full contact with both sides and the backing material. Avoid trapping air bubbles.

Tooling and Finishing

• Timing: Tool the sealant immediately after application, before it starts to skin over (within 10-15 mins typically).
• Method: Use a suitable tooling spatula or finishing tool dipped in a compatible smoothing agent (like Otto Smoothing Agent, diluted as recommended). Avoid soap/detergent solutions, as they can impair adhesion or discolour the sealant.
• Purpose: Tooling ensures good contact with the joint sides, removes excess sealant, and provides a neat, professional finish.

Curing Time

Allow the sealant to cure fully before subjecting it to movement, stress, or cleaning. Curing time depends on temperature, humidity, and sealant thickness (see TDS).

Common Mistakes to Avoid:

• Poor surface preparation.
• Using the wrong (non-fire-rated) backing material.
• Incorrect joint dimensions or sealant depth.
• Tooling too late or using incompatible smoothing agents.
• Applying outside the recommended temperature range.

Why Choose German Quality Sealants from SealantStore.ie?

Over the years here in Ireland, I've used countless tubes of silicone from all sorts of brands. The difference between cheap, generic stuff and premium German products like those from Otto Chemie or Soudal is night and day. It's not just marketing fluff; it's about:

• Superior Raw Materials: German manufacturers tend to use higher-grade polymers and additives.
• Advanced Formulations: Continuous R&D leads to better performance (adhesion, durability, elasticity, special features like fire resistance).
• Rigorous Testing: Products are tested extensively, often beyond basic requirements, to ensure they meet DIN standards and stringent EN norms.
• Manufacturing Consistency: Tight quality control means you get the same high performance from every single cartridge.
• Reliability: Especially for sealants in critical areas – structural bonding, waterproofing, or fire protection silicone – you need absolute confidence it will work as specified, year after year.

At SealantStore.ie, we specifically curate and stock these high-quality German and European brands because we believe professionals and quality-conscious homeowners deserve reliable products. We understand the technical requirements and can help you choose the right sealant for the job, whether it's Ottoseal S94 for fire safety or other specialist products. Investing a little more in quality upfront saves huge costs and potential dangers down the line. Don't compromise, especially on safety!

Case Studies / Real-Life Examples

• Scenario 1: Office Block Refurbishment: During the upgrade of an older office building in Dublin to meet current fire regulations, numerous linear joints between existing concrete floor slabs and new fire-rated partition walls needed sealing. Ottoseal S94 was specified by the fire engineer, along with ceramic fibre backing. Correct application ensured the required EI 120 fire rating was maintained, satisfying building control and providing peace of mind.


• Scenario 2: Apartment Building Corridor: The connection joints between concrete block walls and the steel frames of fire doorsets along an escape corridor required fire sealing. Using Ottoseal S94 with the correct backing material and depth, as per the door manufacturer's fire test evidence which referenced this type of seal, was crucial to ensure the integrity of the entire fire door assembly wasn't compromised.

Ottoseal S94: Pros & Cons

Pros:

• Proven high fire resistance ratings (up to EI 180 possible).
• Excellent adhesion to common construction materials.
• Good movement capability (typically 25% MAF).
• Weather and UV resistant for durability.
• Manufactured by Otto Chemie, a leader in sealant technology (German Quality).7
• CE Marked and tested to relevant EN standards (compliance evidence).
• Neutral cure, low odour.



Cons:

• Premium product, higher cost than standard silicones (but value justified by performance/safety).
• Requires specific knowledge for correct fire-rated application (joint design, backing material).
• Not suitable for all types of fire-stopping penetrations (primarily for linear joints).
• Limited colour range compared to decorative architectural sealants.
• Generally not paintable (typical for silicone sealants).


FAQs about Ottoseal S94

Q: Is Ottoseal S94 paintable?
A: No, like most silicone-based sealants, Ottoseal S94 is generally not paintable.8 Paint will not adhere well to the cured silicone surface.

Q: Can I use Ottoseal S94 in expansion joints?
A: Yes, it's designed for construction joints and can accommodate movement up to its specified Movement Accommodation Factor (typically 25%). Ensure the joint design allows for this movement.

Q: What specific fire rating does Ottoseal S94 achieve?
A: This depends entirely on the joint configuration (width, depth, substrates) and the fire-rated backing material used. It is tested to be capable of achieving ratings like EI 60, EI 120, EI 180 in specific tested systems. Always refer to the official ETA or classification report for the rating applicable to your exact joint design.

Q: Do I always need a primer with Ottoseal S94?
A: Not always. It has excellent adhesion to many common, clean, dry substrates. However, for optimal adhesion on porous surfaces or certain metals/plastics, a primer (like Otto Primer 1216) may be recommended. Check the TDS and perform an adhesion test if unsure.

Q: Where can I buy Ottoseal S94 in Ireland?
A: You can purchase Ottoseal S94 directly from our online store, SealantStore.ie. We offer reliable delivery across Ireland.

Q: Is Ottoseal S94 suitable for outdoor use?
A: Yes, Ottoseal S94 exhibits good resistance to weathering and UV radiation, making it suitable for exterior linear joint applications where fire resistance is required, provided it's used within the parameters of its technical datasheet and testing.9

Ensuring Compliance: Documentation and Certification for B2B Trust

For builders, architects, specifiers, and fire officers (our B2B customers), documentation is key. When using a life-safety product like Ottoseal S94, you need proof of performance. Key documents include:

• CE Mark: Shows the product conforms to EU safety standards.
• Declaration of Performance (DoP): A document provided by the manufacturer declaring the product's performance characteristics based on its testing and relevant standards.
• European Technical Assessment (ETA): An ETA (issued by a Technical Assessment Body like those listed on the EOTA website) provides detailed information on the product's performance and, crucially for fire sealants, the specific tested systems (joint types, sizes, backing materials) for which the fire ratings are valid.

Having access to this documentation is vital for demonstrating compliance with building regulations and ensuring the specified fire performance is achieved. Reputable suppliers like SealantStore.ie understand the importance of this documentation for B2B clients.

Conclusion: Don't Compromise on Fire Safety - Choose Ottoseal S94

Fire safety is not an area for compromise. Using the correct, certified products is essential for protecting lives and property, and for meeting legal building requirements in Ireland. Ottoseal S94 from Otto Chemie represents the pinnacle of German engineering in fire protection silicone sealants. Its proven fire resistance, excellent adhesion, durability, and compliance with stringent European standards make it a trusted choice for professionals sealing fire-rated linear joints.

Remember, the effectiveness of any fire sealant depends critically on correct application – proper surface preparation, correct joint design, using the specified fire-rated backing material, and careful installation are paramount.

By choosing premium German quality sealants like Ottoseal S94, sourced from a knowledgeable supplier like SealantStore.ie, you are investing in reliability, performance, and peace of mind.

Ensure your fire safety compliance – choose Ottoseal S94 from SealantStore.ie today for your projects in Ireland.

And, from one tradesman to another, remember that quality applies to tools as well! For the perfect finish on your tiling projects, consider quality tools. For example, try the Rubi Tile Cutter available from trusted suppliers – you'll be amazed at the excellent work you can do with it!


Don’t mess about ;-)
Do an excellent job!
