Installing Large Format Tiles: Expert Tips for Small Irish Bathrooms

The "slab" revolution has officially landed in Ireland. We are seeing a massive shift from standard 60x60cm ceramics to large format tile installation—giant 120x120cm or even 120x240cm porcelain sheets. Homeowners love the "seamless" look, often called "Tile Drenching," which minimizes grout lines and mimics solid stone.

But let’s be honest: fitting a 1.2-meter slab into a standard 2m x 2m Irish box room bathroom is a logistical nightmare.

If you are a tiler in Ireland today, you know the panic of maneuvering a €200 porcelain slab up a narrow semi-detached staircase. A single slip doesn't just break a tile; it breaks your profit margin for the day.

As a German Master Tiler with 15 years of experience in the Irish market, I am here to tell you that you cannot lay 2026 tiles with 1990 tools. Here is your guide to mastering the slab without breaking your back—or the bank.

I. The Logistics: Moving Giants in Tight Spaces

The biggest risk in large format installation isn't the cutting; it's the moving. A 120x120cm tile can weigh over 20kg. If you try to lift this by the edges with your fingertips, two things happen: you risk snapping the tile under its own tension, and you risk a back injury.

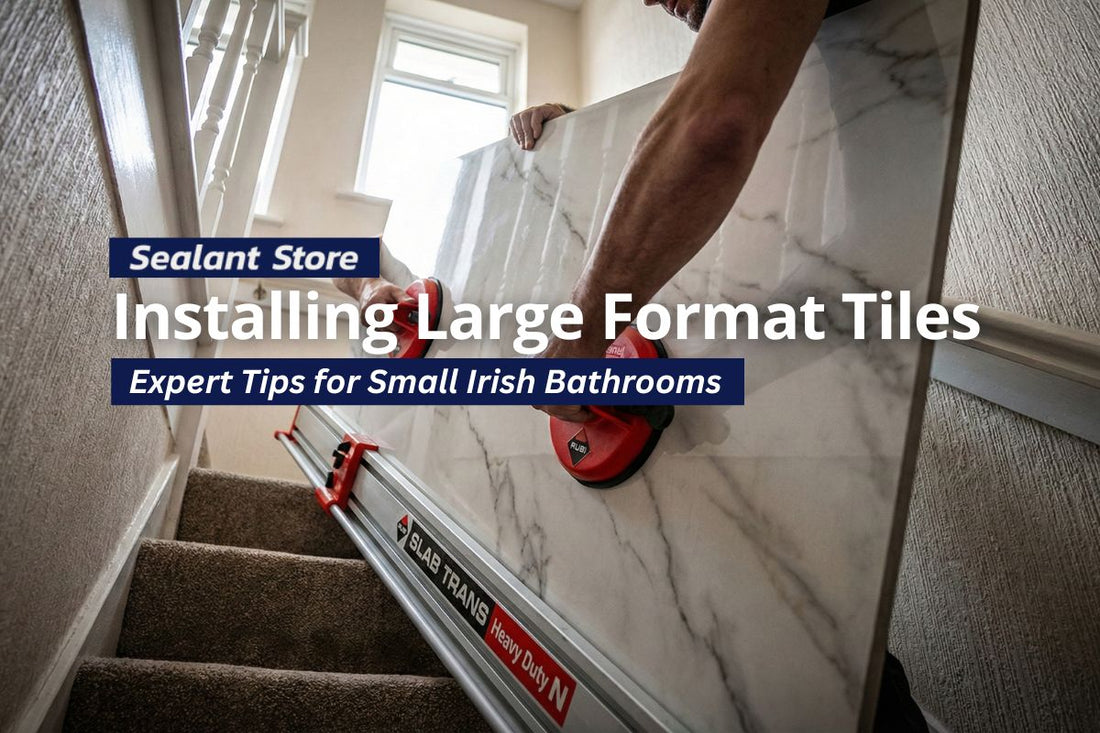

How do I safely transport slabs up stairs?

In typical Irish homes, landings are tight. You need stiffness and grip. You must use a handling rail system.

I recommend the SLAB TRANS Heavy Duty N - RUBI. This system adds a rigid metal spine to the tile. It stops the slab from flexing (which causes cracks) and gives you ergonomic handles. For smaller teams, or solo work on slightly smaller formats, reliable suction cups are mandatory.

Pro Tip: Never use "glass lifters" from a discount store. They are not designed for the texture of porcelain. Use professional vacuum cups like the RUBI - ELLIP SC VACUUM SUCTION CUP (part of the trans system or standalone) that feature a pump mechanism to maintain pressure.

One broken slab costs more than a set of professional cups. Think of these tools as "profit protectors."

II. The "Lippage" Battle: Why Flatness is Harder with Slabs

"Lippage" is the vertical height difference between two adjacent tiles. With small tiles, you can hide a lot. With a 1.2m slab, a 1mm difference creates a toe-stubbing hazard and an ugly shadow line.

Why do large tiles bow?

All ceramic tiles bow slightly during the kiln firing process. On a large format tile, the center is often 1-2mm higher than the corners. If you lay these in a 50% brick bond (where the center of one tile is next to the corner of another), you will get lippage.

The Solution:

1. Offset Pattern: Never exceed a 33% offset (brick bond) for tiles larger than 60cm.


2. Mechanical Levelling: You cannot rely on your eye. You must use a tile levelling system (clips and wedges).

These systems mechanically force the tiles to sit flush with one another while the adhesive cures. At Sealant Store, we stock high-quality wedge systems that don't snap prematurely when you tighten them. This isn't "cheating"; it is virtually impossible to meet BS 5385 standards for large format flatness without them.

III. Cutting & Drilling: Preventing the "Snap"

Cutting a 20mm thick porcelain slab requires immense power. A standard manual cutter will just bounce off the surface.

What is the best cutter for large format tiles?

For speed and cleanliness inside a client's home, nothing beats a high-power manual cutter. You need a breaking power of at least 1000kg to snap these slabs cleanly.

The Rubi TZ 1300 Manual Tile Cutter is the industry standard for a reason. It has 1500kg of breaking power, allowing you to snap 20mm porcelain with one hand. It handles tiles up to 130cm long, covering almost all residential slab sizes in Ireland.

How to drill holes without cracking the slab?

The scariest moment is drilling the pipe holes after you've already cut the tile to size. One mistake here ruins the whole piece.

You need vacuum-brazed diamond bits. I use the DRYGRES PREMIUM Drill Bit range. They fit onto your grinder (M14 thread) and cut dry.

• Start at an angle to bite into the glaze.


• Wiggle the drill (orbital movement) to let the dust escape.


• Let the tool do the work. Pushing too hard creates heat, which cracks the tile.



IV. The Adhesion Criticality

With a 30x30cm tile, if you have a hollow spot of adhesive, it doesn't matter much. With a 120x120cm slab, a hollow spot is a disaster. If a client walks on that hollow spot with high heels, the point load will crack the tile.

The "Back-Buttering" Rule

For large format tile installation, you must achieve 100% adhesive coverage.

1. Trowel the floor using a large notch trowel (10mm or 12mm).


2. Back-butter the tile: Apply a thin flat layer of adhesive to the back of the slab itself.


3. Press and Vibrate: Push the tile into place.

You also need the right glue. You need an adhesive with "S1" or "S2" flexibility classification to handle the thermal expansion of such large surface areas. We recommend using a premium flexible adhesive like Bostik Technik. It provides the "grab" to hold heavy wall tiles without slipping and the flexibility to prevent future cracking.

Case Studies: Real Irish Bathrooms

1. The Box Room Transformation (Dublin)

Challenge: A tiny 1.8m x 2m bathroom. The client wanted 120x60cm marble-effect tiles floor-to-ceiling to make the room look bigger.

Solution: We used the Rubi TZ 1300 to make long vertical cuts. By using a 2mm grout line and a matching silicone, the walls looked like solid marble.

Result: The room visually doubled in size.

2. The Heavy Porcelain Floor (Cork)

Challenge: 20mm thick external porcelain slabs running from a patio into a kitchen.

Solution: These were too thick for standard cutters. We used the Rubi DC-250 Python wet saw for the cuts around the door frame. The "Python" cooling system kept the blade cold, ensuring a factory-perfect edge.

Result: A seamless indoor-outdoor transition.

3. The Cracked Slab Nightmare (Galway - Repair Job)

Challenge: A previous tiler didn't use a levelling system. The homeowner tripped over a lipped tile and cracked it.

Solution: We had to remove the single broken slab. Using DRYGRES bits, we drilled out the grout, carefully removed the shards, and re-installed a new slab using suction cups to lower it gently into place without disturbing the neighbors.
