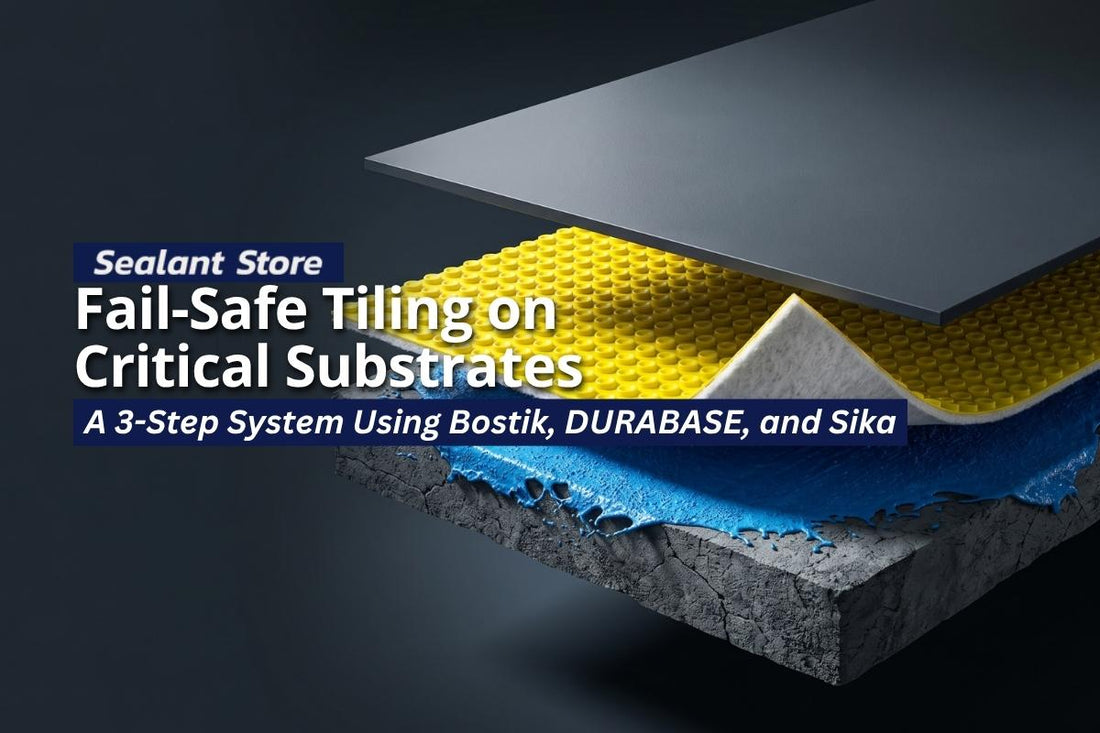

Fail-Safe Tiling on Critical Substrates: A 3-Step System Using Bostik, DURABASE, and Sika

The landscape of Irish construction is changing rapidly. We are no longer simply tiling over well-cured, traditional sand and cement screeds. Today, tradesmen are constantly faced with "critical substrates"—problematic surfaces like freshly poured "green" concrete, timber floors, anhydrite screeds with underfloor heating, or even existing glazed tiles. Tiling directly onto these challenging surfaces without a scientifically backed system is the leading cause of catastrophic floor failures in the country.

Guten Tag. I am a German Master Tiler, and for the past 15 years, I have operated a specialized tiling, silicone, sealant, and adhesive business right here in the Republic of Ireland. In Germany, we treat floor laying as a precise engineering discipline. When dealing with difficult subfloors, you cannot guess; you must use a coordinated chemical and physical system. When you use cheap, unverified materials, you risk your entire project. This is exactly why I constantly advocate for utilizing Premium Quality products. When you source your materials from specialists like Sealant Store Ireland, you are buying manufacturer-backed, professional-grade systems that act as an insurance policy for your hard work. Premium products have higher solids content, better polymer modification, and strict technical warranties that budget alternatives simply cannot match.

Today, we are going to break down the ultimate fail-safe protocol for these demanding environments. We will explore the physics of decoupling, the chemistry of bonding bridges, and how a strict 3-step system will protect your next luxury commercial or residential project.

What is the Danger of Direct Bonding on Critical Substrates?

Short Answer: Direct bonding on critical substrates exposes the rigid tile layer to underlying structural movement. Because standard adhesives cannot absorb the extreme shear stress caused by thermal expansion or the shrinking of "green" concrete, the tension forces the tiles to crack, tent upwards, or violently debond from the floor.

The Physics of Preventing Tile Delamination

To truly understand how to master tiling on critical substrates, you must understand the forces working against you. Concrete and wood are dynamic materials; they expand, contract, and warp based on temperature and moisture levels. Porcelain and ceramic tiles are static and rigid.

When you bond a rigid tile directly to a dynamic substrate using standard cement, you create a structural conflict. As a new concrete slab cures (a process that can take months), it shrinks. If tiles are laid directly onto this "green" concrete, the shrinking substrate pulls the adhesive bed with it. The rigid tile above cannot shrink, which creates immense lateral shear stress.

This stress inevitably leads to failure. Preventing tile delamination—the technical term for tiles popping off the floor—requires us to completely isolate the rigid tile from the moving substrate. This cannot be achieved with cheap primers or standard tile glue. It requires a dedicated, three-step isolation and waterproofing system.

How to Prepare Non-Absorbent Floors? (Step 1: The Bonding Bridge)

Short Answer: To prepare non-absorbent floors, you must apply a specialized "bonding bridge." This is typically a high-grip, grit-filled synthetic primer, such as the Bostik SHP Special Hardsurface Primer, which creates a rough, mechanical key on smooth surfaces like old tiles, allowing the subsequent tile adhesive to securely grip the floor.

Mastering Tiling over Existing Tiles

One of the most common critical substrates in Irish renovations is an existing tiled floor. Ripping up old, well-bonded ceramics creates massive dust, expense, and potential damage to underlying plumbing. Tiling over existing tiles is a fantastic, time-saving alternative, but it presents a major chemical hurdle: standard tile adhesive cannot stick to a smooth, glossy glaze.

This is where Step 1 of our fail-safe system comes into play. You must use a highly engineered primer. According to the Bostik SHP Special Hardsurface Primer TDS (Technical Data Sheet), this specific product is a solvent-free, blue-colored acrylic dispersion loaded with specialized aggregates (sand).

When you roll this primer over old tiles, rigid vinyl, or epoxy coatings, the acrylic polymers bond fiercely to the smooth surface. Once dry, the aggregate leaves a texture resembling coarse sandpaper. This transforms a perfectly smooth, non-absorbent critical substrate into a highly textured surface, providing the ultimate mechanical grip for your tile adhesive.

Expert Tip: While Bostik SHP is excellent for non-absorbent surfaces, if you are dealing with highly porous or dusty critical substrates like old, friable screeds, you need a deep-penetrating consolidator. In these instances, using the OTTOFLEX® Deep Primer ensures that the microscopic pores of the substrate are sealed and strengthened, preventing the floor from sucking the moisture out of your tile adhesive before it can cure.

What is Structural Isolation? (Step 2: DURABASE CI++)

Short Answer: Structural isolation is the process of physically separating the tiled surface from the substrate below using a decoupling mat. The 3mm high DURABASE CI++ mat features a dimpled plastic core with a fleece backing, which absorbs horizontal structural movement, neutralizing lateral stress before it can crack the tiles above.

The Physics of an Uncoupling Membrane for Floors

Step 2 is the most critical phase for guaranteeing longevity. Once the substrate is primed, we must address the structural movement. The industry standard for this is the DURABASE CI++ decoupling mat installation.

How does an uncoupling membrane for floors work? The CI++ mat is composed of a yellow polyethylene sheet formed into a grid of dimples, with an anchoring fleece laminated to its underside. You trowel a flexible tile adhesive onto your primed floor and embed the fleece backing of the mat into it. Then, you trowel your tile adhesive directly on top of the dimpled surface and lay your tiles.

The genius is in the geometry. Because the rigid tiles are adhered to the plastic dimples rather than the concrete floor, they are "decoupled." If the wooden subfloor deflects under heavy footfall, or the green concrete shrinks, the plastic dimples flex and stretch laterally. The mat absorbs 100% of the shear stress, completely neutralizing it. The tiles resting on top remain perfectly stationary and intact.

For advanced tradesmen looking for premium isolation options for luxury builds, we highly recommend utilizing the StructaMat Decoupling Waterproof Mat (Purple) 3mm. Available at Sealant Store Ireland, this roll offers unparalleled anti-shear protection and acts as a fantastic alternative to standard yellow mats, ensuring absolute structural safety for heavy, large-format porcelain slabs.

Vapor Equalization on Damp Screeds

Beyond movement, decoupling mats serve a secondary, vital function: moisture management. In the damp Irish climate, waiting for a deep concrete screed to dry naturally to the required 2% moisture content can take months.

The DURABASE CI++ and premium StructaMat designs feature interconnected air channels beneath the plastic dimples. This allows residual moisture vapor (up to 4% CM) to safely escape from the curing screed and travel to the perimeter of the room, rather than building up pressure and blowing the tiles off the floor.

How Does Liquid Waterproofing Protect Critical Substrates? (Step 3: Sika Sikalastic 260)

Short Answer: Liquid waterproofing protects critical substrates by forming a continuous, elastomeric rubber barrier over the decoupling mat or substrate. Products like the Sikalastic 260 Stop Aqua Tanking Kit are painted on in layers to seal the entire floor and lower walls, preventing water ingress from destroying the underlying structure.

Flawless Liquid Waterproofing Membrane Application

If you are tiling a critical substrate in a wet zone—such as a commercial kitchen, a hospital washroom, or a luxury residential wetroom—structural isolation is only half the battle. You must protect the substrate from top-down water ingress. If water breaches the grout lines and saturates a timber subfloor or an anhydrite screed, the floor will rot and expand, destroying the tile installation regardless of decoupling.

Step 3 is the creation of an impermeable barrier. A thorough Sikalastic 260 Stop Aqua review by industry professionals highlights why this EAD-certified product is the gold standard for wetroom safety.

Proper liquid waterproofing membrane application requires a systematic approach. You do not just paint the floor. You must first use the sealing tapes provided in the kit to bridge all changes in plane (where the floor meets the wall) and to seal over the joints between your decoupling mats. Once the weak points are taped, the Sikalastic 260 liquid rubber is rolled over the entire surface in two generous coats. This creates a seamless, flexible, highly durable tanking layer.

For absolute guaranteed performance in these high-risk areas, purchasing complete, professional-grade kits is essential. The Sikalastic 260 Stop Aqua - Tanking Kit - SIKA provides every chemical component required to meet strict European waterproofing standards, ensuring your critical substrate remains bone-dry.

Why is Anti-Fracture Matting for Heated Floors Essential?

Short Answer: Underfloor heating systems cause rapid, severe thermal expansion and contraction in the screed. Anti-fracture matting absorbs these extreme thermal shocks horizontally. Without it, the expansion forces will transfer directly into the rigid tiles above, causing the grout to shatter and the natural stone or porcelain to crack.

Designing a Waterproof Tile System for Underfloor Heating

Underfloor heating (UFH) is the ultimate critical substrate. When the hot water pipes heat up, the screed expands significantly. When the heating is turned off, it contracts. This constant "breathing" of the floor is brutal on rigid ceramic finishes.

When designing a waterproof tile system for underfloor heating, the inclusion of an anti-fracture matting for heated floors is non-negotiable. It acts as a thermal shock absorber. Furthermore, when dealing with highly sensitive, expensive finishes, utilizing a decoupling mat for natural stone prevents the thermal stress from cracking the natural fault lines present in marble, travertine, or limestone.

The Finishing Touches: Protecting the Perimeter

Once your three-step system is installed and the tiles are laid, the final, most crucial step in managing movement on a critical substrate is the perimeter expansion joint. If you fill the perimeter joints with rigid grout, the floor cannot expand, and the decoupling mat cannot do its job.

You must seal all perimeters and structural joints with a highly flexible, premium silicone. Standard hardware silicones tear easily under thermal stress. I exclusively use OTTOSEAL® S70 Premium Natural Stone Silicone. It is heavily modified to withstand extreme joint movement (S2 level flexibility) without tearing, and because it is a natural stone silicone, it will never leach plasticizing oils into your expensive stone or porcelain edges. For the main tile joints, finishing with an advanced, thermally resistant compound like Botament M32 Supax Grout guarantees that your grout lines remain pristine, crack-free, and hydrophobic, even over intensely heated floors.

3 Real-Life Case Studies of Tiling on Critical Substrates

Case Study 1: The Dublin "Green" Concrete Rush

The Challenge: A commercial contractor in Dublin had to lay 200 square meters of 120x120cm porcelain in a retail foyer. The concrete slab had only been poured 21 days prior and was still actively shrinking and releasing moisture.

The Solution: Waiting 90 days for the slab to cure was financially impossible. We utilized a premium StructaMat decoupling system. The mat bridged the micro-cracks forming in the shrinking concrete, while the air channels allowed the excess moisture vapor to safely vent to the perimeters. The massive porcelain slabs were laid successfully with zero cracking or delamination.

Case Study 2: Tiling Over Existing Floors in a Galway Hotel

The Challenge: A luxury hotel in Galway needed to renovate their main bathrooms rapidly. Ripping up the existing, heavily bonded ceramic tiles would have taken weeks and created unacceptable noise for guests.

The Solution: We implemented Step 1 of the fail-safe system. We thoroughly degreased the old tiles and applied Bostik SHP Special Hardsurface Primer. The grit-filled acrylic bonded ferociously to the old glaze, creating a perfect sandpaper-like texture. We then applied the Sikalastic 260 membrane directly over this before tiling, completing the renovation silently and in record time.

Case Study 3: The Cork Timber Frame Wetroom

The Challenge: A new timber-frame extension in Cork featured a master en-suite wetroom on the first floor. The plywood subfloor had significant "bounce" (deflection), which is lethal to rigid tiles and waterproofing.

The Solution: We screwed down cement backer boards to increase rigidity, but structural movement was still a risk. We installed a DURABASE CI++ mat to absorb the sheer stress of the timber movement. We then applied the Sika Sikalastic 260 kit over the entire floor and up the shower walls, ensuring that any flex in the building would not tear the waterproofing or pop the tiles.

Pros and Cons of the 3-Step Fail-Safe System

Pros:

• Total Risk Mitigation: Virtually eliminates the risk of cracked tiles and debonding on unstable floors.


• Insurance Backed: Using coordinated, EAD-certified systems allows for strict technical warranties and confident project sign-offs.


• Time Saving: Allows for fast-track tiling on green concrete and tiling over existing tiles without massive demolition.


• Moisture Management: Equalizes vapor pressure, protecting both the adhesive bond and the indoor air quality.

Cons:

• Increased Material Cost: Premium primers, decoupling mats, and tanking kits require a higher upfront budget than standard direct bonding.


• Height Buildup: The addition of a 3mm decoupling mat plus layers of adhesive slightly increases the overall height of the finished floor.


• Skill Requirement: Liquid tanking and mat installation require strict adherence to manufacturer application protocols to guarantee the warranty.

7 Frequently Asked Questions

1. Can I tile directly onto plywood?
It is highly discouraged. Plywood is a critical substrate that absorbs moisture and flexes heavily under weight. It should always be overboarded with a dimensionally stable cement backer board, or fitted with a premium uncoupling membrane before tiling.

2. How long does Bostik SHP take to dry?
Depending on the ambient temperature and humidity of the room, Bostik SHP Special Hardsurface Primer typically takes between 1 to 2 hours to dry to a rough, walkable, and tileable finish.

3. Do I need a decoupling mat if I am tiling over old tiles?
If the old tiles are laid on a perfectly solid, crack-free concrete base with no underfloor heating, a grit primer is usually sufficient. However, if the old floor shows signs of structural cracking or movement, a decoupling mat is highly recommended.

4. What is the difference between decoupling and uncoupling?
There is no difference. 'Decoupling' and 'uncoupling' are interchangeable industry terms used to describe the process of physically isolating the tiled surface from the substrate to neutralize shear stress.

5. Can I use standard silicone on natural stone tiles?
No. Standard silicone contains plasticizing oils that will migrate into the porous edges of natural stone, causing a permanent, dark greasy halo known as picture framing. You must use a specialized, non-staining natural stone silicone.

6. Is liquid waterproofing better than sheet membranes?
Both have their place. Liquid membranes like Sikalastic 260 are excellent because they create a completely seamless, joint-free rubber barrier that easily handles complex corners and pipe penetrations without the risk of overlapping seam failures.

7. Why do tiles tent or pop up in the middle of a room?
Tenting occurs when tiles are laid without a decoupling mat on a shrinking substrate, or when the perimeter expansion joints are filled with hard grout instead of flexible silicone, leaving the expanding tiles with nowhere to go but up.

Conclusion

Tiling on critical substrates is not a gamble; it is a calculated science. The days of simply hoping an extra-strong adhesive will hold back the massive forces of thermal expansion or a shrinking concrete slab are over. By implementing this strict, fail-safe 3-step system—utilizing an aggressive grit primer for a bonding bridge, structural isolation through a decoupling mat, and finishing with an impenetrable liquid waterproofing membrane—you drastically reduce the risk of catastrophic failure in high-traffic commercial zones and luxury residential builds.

As a professional, your reputation hinges on the longevity of your installations. Never compromise the structural integrity of your floors by using unverified, budget materials. Protect your craftsmanship by investing in the coordinated, scientifically proven systems available from specialists. Find everything you need for Ireland’s most demanding tiling projects at sealantstore.ie. Tackle your toughest tiling jobs with confidence.



There is no 'good enough'
There is only correct!
